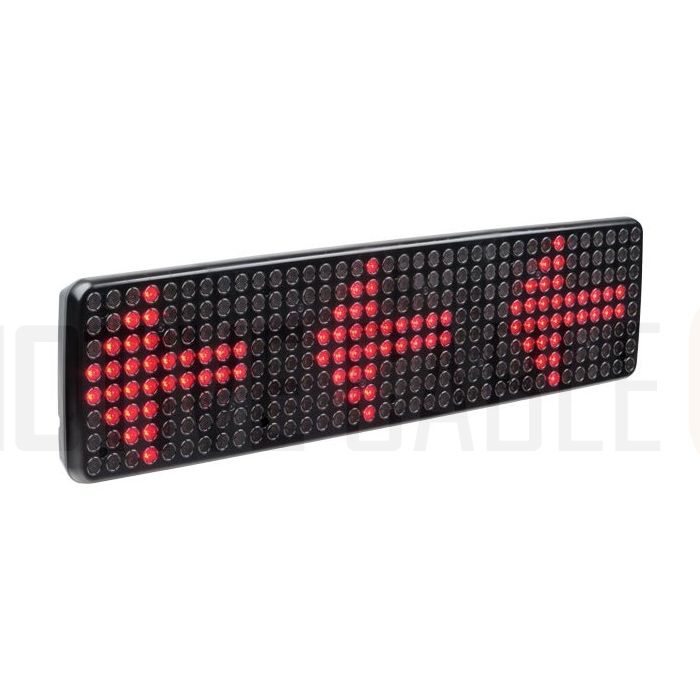

Ionnic CD0012R-S1 Slave M5 Matrix Display

Special Price $2,497.88 Regular Price $2,838.50
In stock
SKU
CD0012R-S1
Ionnic CD0012R-S1 Slave M5 Matrix Display is available to buy in increments of 1

Ionnic CD0012R-S1 Slave M5 Matrix Display

Ionnic CD0012R-S1 Slave M5 Matrix Display

Features:

  • Touch screen controller.
  • Simple and easy to operate user interface.
  • 2GB Micro SD card message storage.
  • Up to 99 messages.
  • PC software to create/edit messages.
  • Easily readable from 100m.
  • Auto text rotation when mounted upside-down.
  • ECE R10 & C-Tick approved.
  • Protected against reverse-polarity, supply transients and thermal overload.
  • Multi-voltage.
  • Park, ignition and remote switching inputs.
  • Environmentally sealed - IP67 (display only).

Specifications:

  • Voltage:10-30V
  • Current Draw:2.6A @ 13.6V
  • Weight:2.2 kg
  • Light Source:8 x 6 (288) LEDs
  • Controller:Touch Screen
  • Power Harness:5m
  • Controller Harness:0.6m
    Extension 2.5m
  • Approvals:ECE R10 (Display only)
    C-Tick No. N19830
  • IP Rating:IP67 (Display Only)
  • Operating Temp:-20°C to 65°C
More Information
Manufacturer IONNIC
