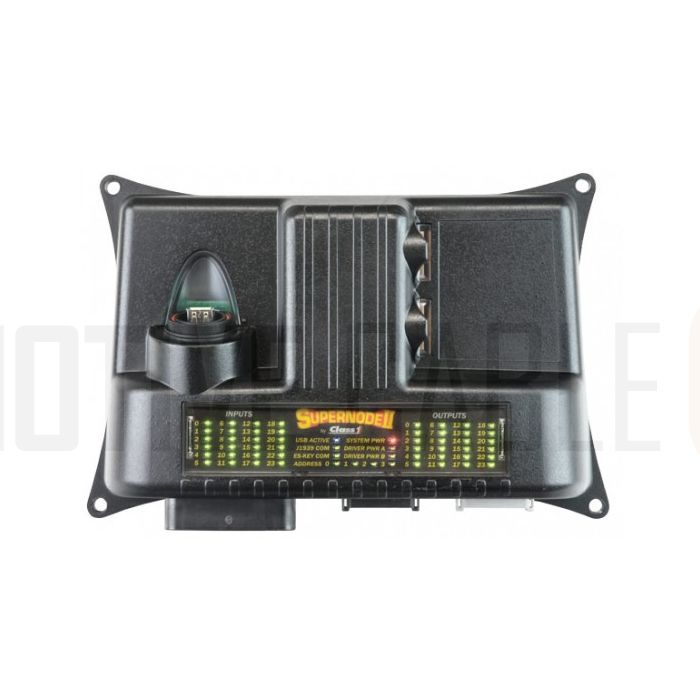

Ionnic 119891 Supernode II System Manager - ES-Key

Special Price $4,249.67 Regular Price $4,473.34
In stock
SKU
119891
Ionnic 119891 Supernode II System Manager - ES-Key is available to buy in increments of 1

Ionnic 119891 Supernode II System Manager - ES-Key

Ionnic 119891 Supernode II System Manager - ES-Key

Features:

The Supernode II consolidates the functions of several Es-Key modules - USM, Data Logger, Seatbelt, Vehicle Data Recorder (VDR), Climate Control, Digital Input/Output Module & Power Distribution Module. This reduces node count and simplifies addressing. Making it well suited for applications where a centralised node location is required.

  • SAE J1939 CAN engine message reception and Es-Key network controller.
  • Digital circuit breakers on all positive outputs.
  • Output ‘open load’ detection.
  • Diagnostic LED indicators.
  • Optional modem available upon request.
  • Environmentally sealed - IP67.
  • Multi-voltage.

Specifications:

  • Voltage:9-32V
  • Body:Die-cast
  • Current Draw:500mA @ 13.8V
    350mA @ 27.6V
  • Inputs:24 Polarity selectable
  • Outputs:18 Positive
    @ 13A
    6 Negative
    @ 2A
  • IP Rating:IP67
  • CAN:SAE J1939
  • Operating Temp:-40°C to 85°C
  • Note:Optional integrated modem available
